A spiral bevel gear is a precision-engineered power transmission component designed to transfer torque and rotational motion between intersecting shafts, typically at a 90-degree angle. Unlike straight bevel gears, a spiral bevel gear set features curved teeth that provide smoother tooth engagement, reduced vibration, quieter operation, and improved load distribution, resulting in higher spiral bevel gear efficiency and longer service life.
Advanced spiral bevel gear design enables reliable performance under high-speed and heavy-load operating conditions, making bevel gear spiral solutions ideal for demanding industrial applications. These gears are widely used in automotive drive axles, planetary gearboxes, construction machinery, agricultural equipment, robotics, and other industrial transmission systems where precision, durability, and efficiency are essential.
As an experienced spiral bevel gear factory, PTK Gear manufactures custom spiral bevel gears with high dimensional accuracy, optimized tooth geometry, and strict quality control to meet OEM and industrial application requirements.

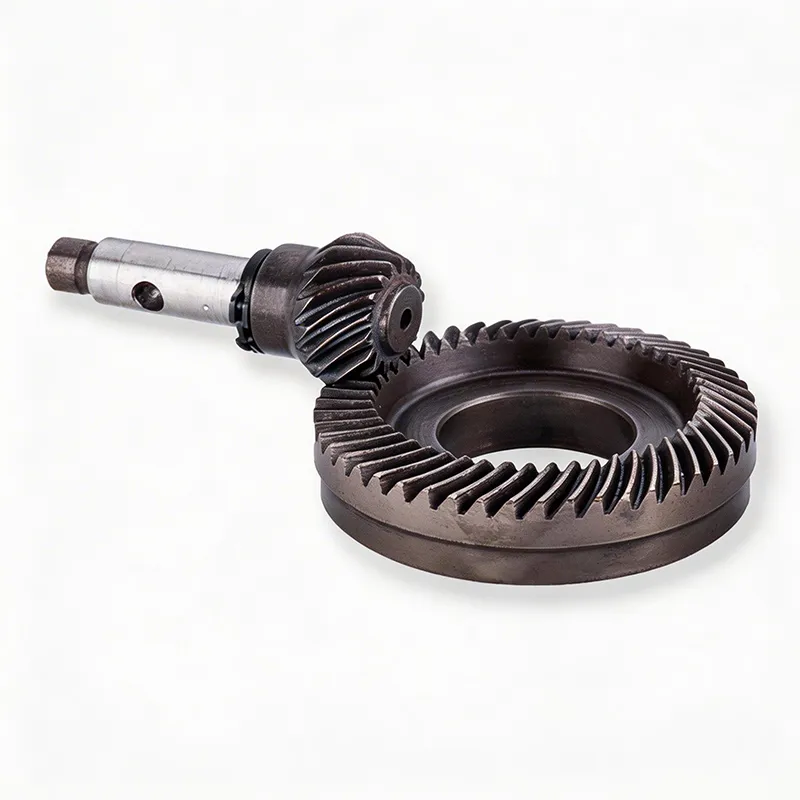

Spiral bevel gears transmit power between intersecting shafts. Featuring curved teeth, they engage smoothly with low vibration and noise. They have high load capacity, high efficiency and strong wear resistance. Widely used in reducers, automobiles, engineering machinery and industrial equipment for stable speed change and torque boosting.
Higher Transmission Efficiency – Optimized spiral bevel gear design provides smoother tooth engagement, reducing power loss and improving overall spiral bevel gear efficiency.
Lower Noise and Vibration – The curved tooth profile minimizes impact during meshing, ensuring quieter operation and greater transmission stability.
High Load Capacity – A larger tooth contact area distributes loads more evenly, enabling reliable performance under high torque and heavy-duty conditions.
Excellent Durability – Precision machining, premium materials, and heat treatment deliver superior wear resistance and extended service life.
Custom Gear Solutions – As a professional spiral bevel gear factory, PTK manufactures custom spiral bevel gears to meet diverse industrial application requirements.
The spiral bevel gear is often employed in right-angle power transmission (e.g., agricultural equipment, electric power tools, and heavy-duty gear reducers).
| Technical Parameter | Specifications / Range |
| Material | 20CrMnTi, 40Cr, 42CrMo, C45 Steel, Stainless Steel |
| Module | 0.5 - 12 |
| Accuracy | DIN 5 - DIN 8 / AGMA 9 - 12 |
| Surface Treatment | Carburizing & Quenching, Nitriding, Black Oxide |
| Tooth Hardness | HRC 55-62 (after heat treatment) |
| Pressure Angle | 20° (Standard), Custom 14.5° or 25° |
| Applications | Gearboxes, Agriculture Machinery, Power Tools |
1. Every batch undergoes CMM measurement, gear profile/lead testing, and metallurgical analysis, accompanied by full original inspection reports to ensure 100% compliance.
2. With over 15 years of experience serving global industrial and agricultural giants, we are well-versed in DIN/AGMA standards and can accurately interpret and execute complex engineering intents.
3. For the agricultural aftermarket (e.g., John Deere, Kubota), we utilize reverse engineering to provide replacement parts that match or even exceed the performance of original equipment.
4. Our technical team acts as consultants. We frequently provide customers with cost-saving design optimizations, enhancing transmission torque through parameter refinement.
5. Built for the Long Haul. In-house vacuum carburizing and hardening. We don't just cut teeth — we engineer durability against pitting and tooth breakage.
The main difference is shaft alignment. A spiral bevel gear operates with intersecting shafts, usually at 90 degrees, while a hypoid gear operates with offset, non-intersecting shafts. Hypoid gears provide higher torque capacity and smoother engagement, while spiral bevel gears offer higher efficiency and simpler design for standard right-angle power transmission systems.
The spiral bevel gear manufacturing process typically includes gear blank forging or machining, CNC cutting, heat treatment (carburizing and hardening), precision grinding, and final inspection. Advanced manufacturers use CNC gear generators and CMM inspection to ensure high accuracy and consistent performance.
A spiral bevel gear is used to transmit power between intersecting shafts, typically at a 90-degree angle. It is widely applied in automotive drive axles, differentials, planetary gear systems, construction machinery, and industrial gearboxes where high torque, smooth operation, and reliability are required.
Yes, spiral bevel gears can be fully customized based on application requirements. Parameters such as module, pressure angle, tooth geometry, material, hardness, and surface treatment can all be tailored. A professional spiral bevel gear manufacturer can also support OEM production and engineering design optimization.
Spiral bevel gears are widely used in automotive systems, agricultural machinery, mining equipment, marine applications, robotics, and industrial power transmission systems. They are preferred in applications requiring high efficiency, durability, and stable torque transfer.
